No.8915-50

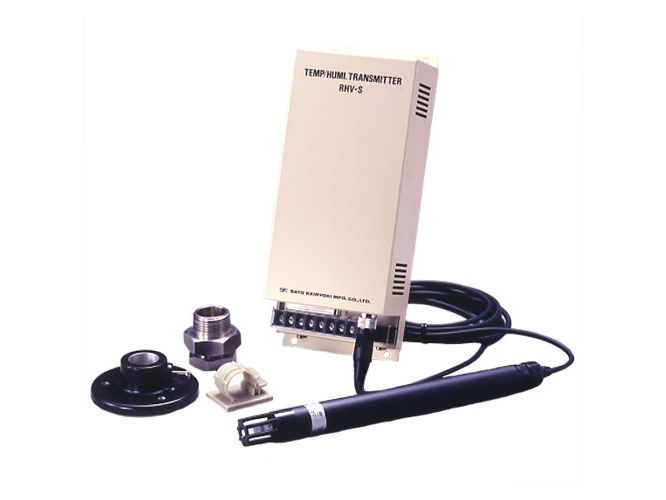

- Discontinued - Temperature/Humidity Transmitter
SK-RHV-S-VIC
Calibration : Available
JCSS Accredited Calibration : Not available
This product is discontinued. SK-RHC Series is the upgraded model.
Specifications
| Cat. No. | 8915-50 | |
| Product name | Temperature/Humidity Transmitter | |
| Model name | SK-RHV-S-VIC | |
| Measuring range | Temperature | −10 to 60°C |
| Humidity | 25 to 95%rh (at 23°C) | |
| Accuracy | Temperature | ±0.5°C |
| Humidity |
±3%rh (0 to 50°C) ±5%rh (other) | |
| Detectors |
Thermistor (temperature) Resistive polymeric humidity sensor (humidity) | |
| Operation ambient | −5 to 60°C, less than 80%rh without condensing | |
| Selectable outputs | See below* | |
| Dimensions |
Main body: 90 (W) x 222 (H) x 57 (D) mm Probe: 20 mm diameter x 20 mm (L) Cable: 5 m (L) | |
| Weight |
Main body: 780 g Probe: 80 g | |
| Power | 100 VAC±10%, 6 W | |
| Standard accessories | Sensor filter x1, clamp to mount sensor x1 | |
* Five patterns of selectable outputs
| By voltage |
−1 to 6 mVDC for −10 to 60°C 0 to 10 mVDC for 0 to 100%rh |
|
−10 to 60 mVDC for −10 to 60°C 0 to 100 mVDC for 0 to 100%rh | |
|
−100 to 600 mVDC for −10 to 60°C 0 to 1 VDC for 0 to 100%rh | |
| By current |
4 to 20 mADC for −10 to 60°C 4 to 20 mADC for 0 to 100%rh |
|
By RS-232C via D-sub 25P connector |
Transfer speed: 2400 bps Bit number: 8 bits Stop bit: 1 bit Parity bit: None |
