No.8985-00

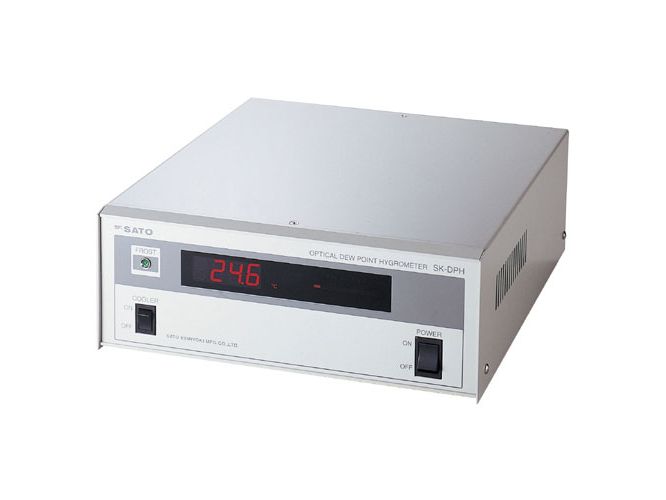

- Discontinued - Optical Dew Point Hygrometer
SK-DPH-5D
Calibration : Not available
JCSS Accredited Calibration : Available
This product is discontinued.
Specifications
| Cat. No. | 8985-00 |
| Product name | Optical Dew Point Hygrometer |
| Model name | SK-DPH-5D |
| Measuring range |
Specified 50°C-range within −45 to 50°C (air cooling under 20°C ambient) Specified 50°C-range within −55 to 15°C (water cooling with water temperature 20°C) * Determine your desired range when you order. |
| Accuracy |
± (0.2 + 1 digit)°C (> −20°C) ± (0.5 + 1 digit)°C (−40 to −20°C) ± (1.0 + 1 digit)°C (< −40°C) |
| Resolution | 0.1°C |
| Operating ambient |
Detector: −10 to 40°C Indicator: 0 to 45°C, less than 80%rh without condensing |
| Functions |
Automatic discrimination of dew point and frost point LED display of 3 1/2 digits |
| System | Optical dew point detection with automatic microcomputer control of amount of dew and peltier cooler |
| Pressure of measured gas | 0.5 MPa max. |
| Flow rate of measured gas | 0.2–1.0 L/min. |
| Flow rate of coolant water | 1.0–3.0 L/min. |
| External output |
Voltage output: −1 to 1 V for −100 to 100°C Current output: 4 to 20 mA for −100 to 100°C RS-232C output |
| Dimensions |
Indicator: 270 (W) x 109 (H) x 270 (D) mm Detector: 110 (W) x 144 (H) x 110 (D) mm Detector-indicator cable: 4 m Power cable: 2 m |
| Weight |
Indicator: 6.0 kg Detector: 2.4 kg |
| Power | 100 VAC ±10% |
| Standard accessories | Detector-indicator cable x1, power cable x1, air pump with flowmeter x1, set of sampling tubes x1, JCSS-accredited calibration certificate |
