No.8982-00

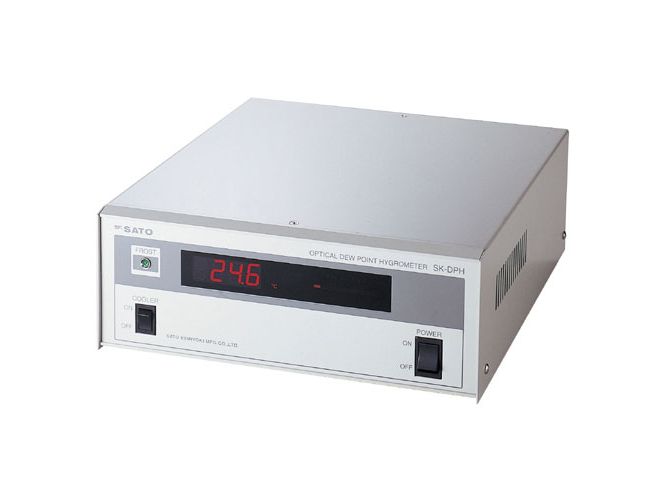

- Discontinued - Optical Dew Point Hygrometer
SK-DPH-2D
Calibration : Not available
JCSS Accredited Calibration : Available
This product is discontinued.
Specifications
| Cat. No. | 8982-00 |
| Product name | Optical Dew Point Hygrometer |
| Model name | SK-DPH-2D |
| Measuring range | −15 to 35°C |
| Accuracy | ± (0.2 + 1 digit)°C |
| Resolution | 0.1°C |
| Operating ambient |
Detector: −10 to 40°C Indicator: 0 to 45°C, less than 80%rh without condensing |
| Functions |
Automatic discrimination of dew point and frost point LED display of 3 1/2 digits |
| System | Optical dew point detection with automatic microcomputer control of amount of dew and peltier cooler |
| Pressure of measured gas | 0.5 MPa max. |
| Flow rate of measured gas | 0.2–1.0 L/min. |
| External output |
Voltage output: −1 to 1 V for −100 to 100°C Current output: 4 to 20 mA for −100 to 100°C RS-232C output |
| Dimensions |
Indicator: 270 (W) x 109 (H) x 270 (D) mm Detector: 88 (W) x 88 (H) x 95 (D) mm Detector-indicator cable: 4 m Power cable: 2 m |
| Weight |
Indicator: 4.5 kg Detector: 0.5 kg |
| Power | 100 VAC ±10% |
| Standard accessories | Detector-indicator cable x1, power cable x1, air pump with flowmeter x1, set of sampling tubes x1, JCSS-accredited calibration certificate |
