No.8911-10

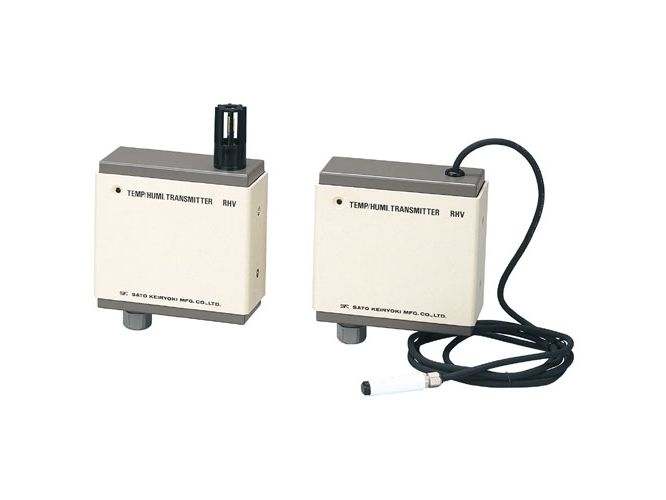

- Discontinued - Temperature/Humidity Transmitter with Plug-in Sensor, 0–100 mV
SK-RHV-1-1-A
Calibration : Available
JCSS Accredited Calibration : Not available
This product is discontinued. SK-RHC Series is the upgraded model.
Specifications
| Cat. No. | 8911-10 | |
| Product name | Temperature/Humidity Transmitter with Plug-in Sensor, 0–100 mV | |
| Model name | SK-RHV-1-1-A | |
| Measuring range | Temperature | −10 to 60°C |
| Humidity | 25 to 95%rh (at 23°C) | |
| Accuracy | Temperature | ±0.5°C |
| Humidity |
±3%rh (0 to 50°C) ±5%rh (other) | |
| Detectors |
Thermistor (temperature) Resistive polymeric humidity sensor (humidity) | |
| Voltage output | Temperature | −10 to 60 mVDC for −10 to 60°C |
| Humidity | 0 to 100 mVDC for 0 to 100%rh | |
| Operation ambient | −10 to 60°C, less than 80%rh without condensing | |
| Dimensions | 101 (W) x 132 (H) x 48 (D) mm including sensor | |
| Weight | 280 g | |
| Power | 12–24 VDC or AC adapter sold separately | |
