Hybrid Recorder

Information

This product is discontinued. Information on this page is as of April 2023.

Feature

■ Compact design

Compact dimensions with 15 cm in depth enable the instrument located in a narrow space.

■ Simple operation

No configuration needed. This device keeps a simple operation just by turning on the power which is the advantage of analog recorders.

■ Double logging on chart and microSD

A reliable paper recording and a backup in microSD are processed altogether.

You don't have to worry about sudden shortage of chart paper as the data is also stored in microSD.

■ Easy maintenance of pens and paper

A fiber tip pen installed in the unit is free from stuck ink and is replaceable without getting your hands dirty.

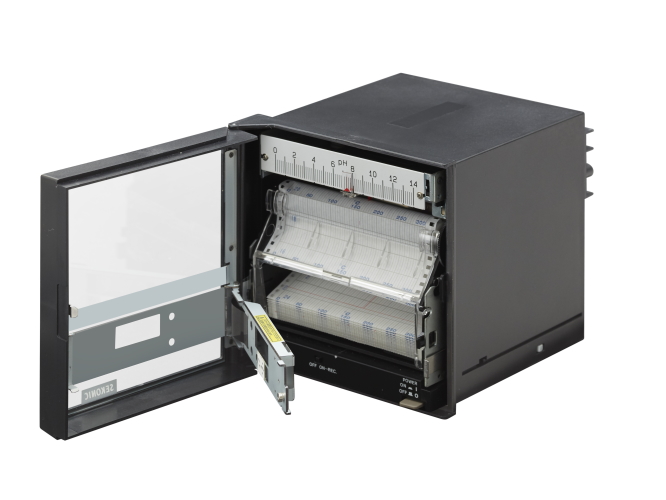

The chart cassette is designed to be able to read the data without stopping recording and confirm the remaining amount of the paper, as well as to exchange the paper easily.

■ Visible LED indication

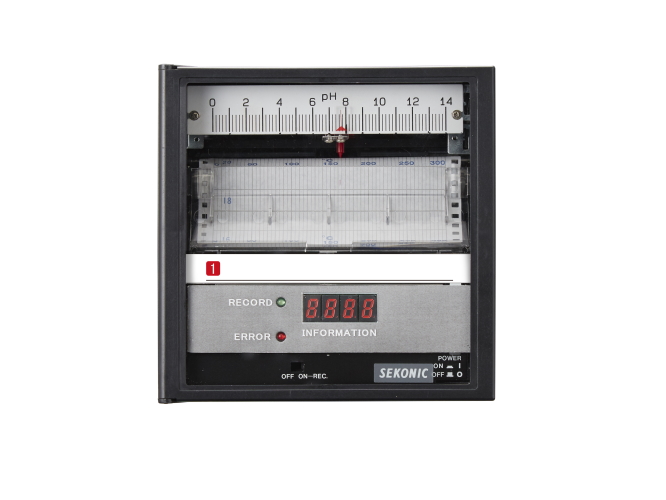

>Measured values are displayed on a 7-segment 4-digit LED panel in addition to conventional analog outputs.

■ MicroSD card to export

As the data is recorded in microSD in CSV format, you can edit it using spreadsheets.

* MicroSD card must be purchased separately.

■ Various input selectable

Choose one input method from DC current, DC voltage, thermistors, or seven types of thermocouples when you order.

■ Various customization

Many options such as alert, remote control, burnout function, and adding a carrying handle are available with additional fee.

■ Lithium battery

A lithium battery installed in the device makes it keep the time count even when it's turned off.

The battery gets full after ten hours of operation and lasts for a month forward.

Specifications

Cat. No.		8750-00
Product name		Hybrid Recorder
Model name		SH-101PA
Input signal	Thermocouple	K: 0–300, 0–400, 0–500, 0–600, 0–800, 0–1000, 0–1200, 500–1200°C E: 0–150, 0–300°C J: 0–200, 0–300, 0–400, 0–600, 0–800°C T: 0–200, 0–300, −50 – 150°C R: 0–1400, 0–1600, 800–1600°C S: 0–1400, 0–1600°C B: 500–1800, 600–1800°C
	Voltage	0–10 mV, 0–100 mV, 0–1 V, 0–2 V, 0–5 V, 1–5 V, 0–10 V
	Thermistor	Pt100Ω: 0–200, 0–300, 0–400, 0–500, −20 – 80, −50 – 50, −50 – 100, −50 – 150, −100 – 50, −100 – 100°C JPt100Ω: 0–50, 0–100, 0–150°C
	Current	4–20 mA, 0–20 mA
Pen		One disposable felt pen (red)
Chart paper		Valid width 100 mm, length 16 m
Feeding speed		10–20–40 mm/h, 20–40–80 mm/h, 60–120–240 mm/h, 120–240–480 mm/h, 200–400–800 mm/h, 5–10–20 mm/min., 10–20–40 mm/min., 20–40–80 mm/min., 40–80–160 mm/min., 50–100–200 mm/min.
Accuracy	Chart recording	±0.5% F.S. (23±2°C, 55±10%rh)
	Digital display	±0.1% F.S. ±1 digit (23±2°C, 55±10%rh)
Other performance	Linearity	±0.3% F.S. (23±2°C, 55±10%rh)
	Dead band	±0.3% F.S. (23±2°C, 55±10%rh)
	NMRR	50 dB
	CMRR	140 dB
	Insulation resistance	100 MΩ, 500 VDC for 1 min.
	Withstand voltage	500 VAC for 1 min.
Operation ambient		0 to 50°C, 35 to 85%rh without condensing
Dimensions		144 (W) x 144 (H) x 179 (D) mm Front panel glass: 138 x 138 mm
Weight		2.0 kg
Rating	Input impedance	1 MΩ for DC voltage, thermocouples, thermistors 250 Ω for DC current
	Signal source impedance	±0.3% F.S.
	Power	100–240 VAC
	Power consumption	16 VA
Customizable options		Alert (Hi, Lo, or Hi & Lo) Relay contact output 250 VAC, 3 A Remote pen motor start/stop, remote logging start/stop Upscale burnout Adding a carrying handle and rubber feet Changing AC inlet to 12 VDC, 24 VDC
