No.8152-00

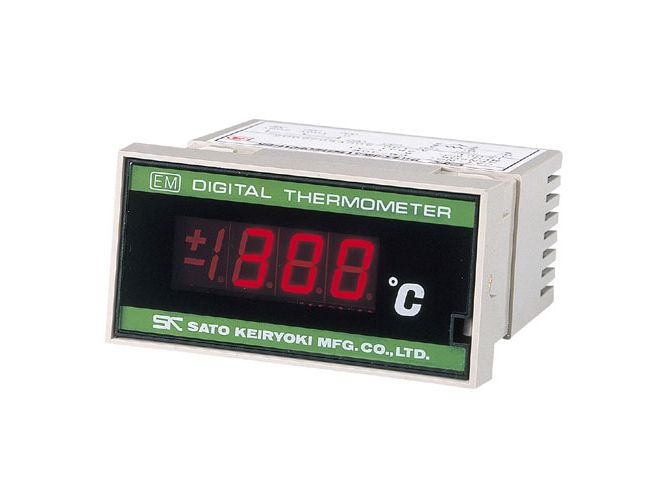

- Discontinued - Temperature Indicator
EM-20R
JAN code : 4974425273102
Calibration : Not available
JCSS Accredited Calibration : Not available
This product is discontinued.
Refer to the inherited model Digital Panel Meter SK-EM-20.
Feature
■ Digital display by red LED with a height of 14 mm
■ Compact size of 96 x 48 mm applies to DIN standards
Specifications
| Cat. No. | 8152-00 |
| Product name | Temperature Indicator |
| Model name | EM-20R |
| Measuring range | −50 to 200°C |
| Display accuracy | ±0.3% F.S. |
| Resolution | 0.1°C |
| Function |
7-segment LED with digit height 14 mm Insulation resistance 100 MΩ, 50 VDC |
| Operating ambient | −10 to 55°C |
| Dimensions | 96 (W) x 48 (H) x 115 (D) mm |
| Weight | 400 g |
| Power | 100 or 200 VAC, 5 VA |
