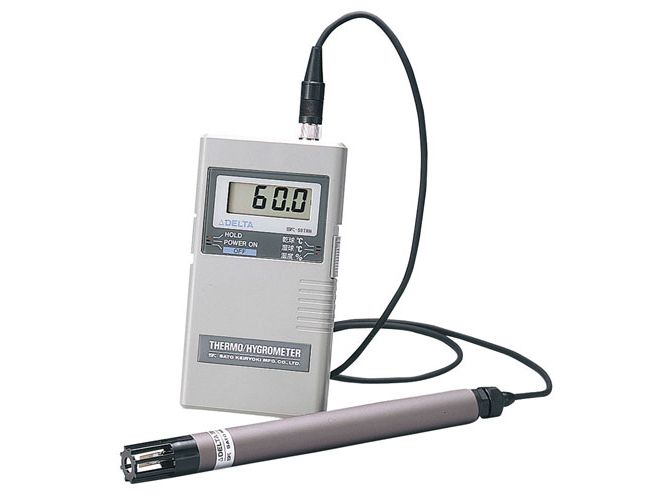

Digital Thermohygrometer

Feature

■ SK-90TRH is one of the pioneering electronic thermohygrometers released by Sato. Its high repeatability and responsiveness, automatic temperature compensation processed in a microcomputer contribute to condensation- and humidity-resistant property.

■ High quality resistive humidity sensor HSK-III enables long-term measurement in high humidity ambient

■ One-chip microcomputer for precise calculation

■ Sensor filter for dusty environment

A sensor filter of a dedicated material is included in the kit to cover the sensor section without worsening the accuracy in dusty environment.

■ High repeatability and responsiveness

SK-80TRH has a humidity sensor achieved to minimize the effect of hysteresis as little as ±1% with high responsiveness. Ideal for a wide range of humidity measurement.

■ Displays wet bulb temperature. Hold function equipped.

SK-90TRH displays wet bulb temperature in addition to temperature and humidity, calculated from the two values.

Hold switch enables the measured figures frozen temporarily to help you read them.

Specifications

Cat. No.		8086-00
Product name		Digital Thermohygrometer
Model name		SK-90TRH
Measuring range	Dry bulb temp.	0 to 60°C
	Wet bulb temp.	0 to 60°C
	Humidity	20 to 99.9%rh (23°C)
Accuracy	Temperature	±0.5°C Wet bulb temp. is not a measured value but a calculated reference
	Humidity	±2%rh (30 to 90%rh, 0 to 50°C) ±4%rh (other)
Repeatability	Humidity
Resolution	Temperature	0.1°C
	Humidity	0.1%rh
Detector	Temperature	Thermistor
	Humidity	Resistive polymeric humidity sensor
Display hold function		Available
Operation ambient		−10 to 60°C
Power		9-volt battery x1, or AC adapter sold separately
Materials		ABS resin, acrylic glass
Dimensions	Main body	80 (W) x 156 (H) x 25.5 (D) mm
	Probe	20 mm diameter x 205 mm (L)
	Cable	1.5 m (L)
Weight	Main body	200 g
	Probe	80 g
Standard accessories		Sensor filter x1, carrying case x1, standard probe SK-80P1 x1, 9-volt zinc-carbon battery x1
