No.7932-02-00

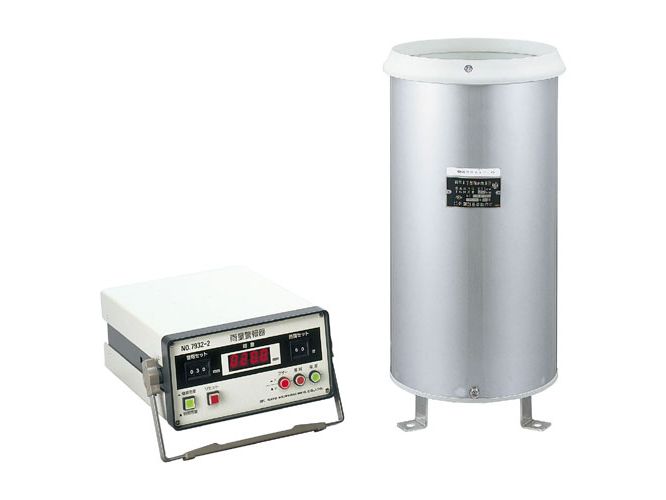

- Discontinued - Digital Rainfall Indicator
Calibration : Not available
JCSS Accredited Calibration : Not available
This product is discontinued.
Specifications
| Cat. No. | 7932-02-00 | |
| Product name | Digital Rainfall Indicator | |
| Tipping Bucket Rainfall Sensor (Same as Cat. No. 7821-00) | ||
| Contact capacity | 1 ADC, 250 VDC max. | |
| Required contact time | 0.1 seconds | |
| Connection cable | 2-wire VCTF 0.3 mm2 cable, 20 m | |
| Material | Stainless steel SUS304 | |
| Dimensions |
220 mm diameter x 450 mm (H) Orifice: 200 mm dia. | |
| Weight | 2.2 kg | |
| Rainfall Indicator | ||
| Measuring range | 0 to 1000 mm then returns to 0 | |
| Accuracy |
±0.5 mm < 20 mm of rainfall) ±3%rdg (> 20 mm) | |
| Resolution | 0.5 mm of rainfall, equivalent to one pulse | |
| Display range | 0.0 to 999.5 mm | |
| No. of alarm | One for time rainfall or accumulated rainfall | |
| Alarm range | 0 to 999mm | |
| Alarm output | Dry contact (rated load 120 VAC, 5 A), beeping, LED | |
| Operation ambient | −10 to 50°C, 20 to 90%rh | |
| Power |
100 VAC ±10% Power consumption max. 200 mA Internal battery works 7 hours in a blackout. | |
| Dimensions | 206 (W) x 106 (H) x 305 (W) mm | |
| Weight | 4 kg | |
