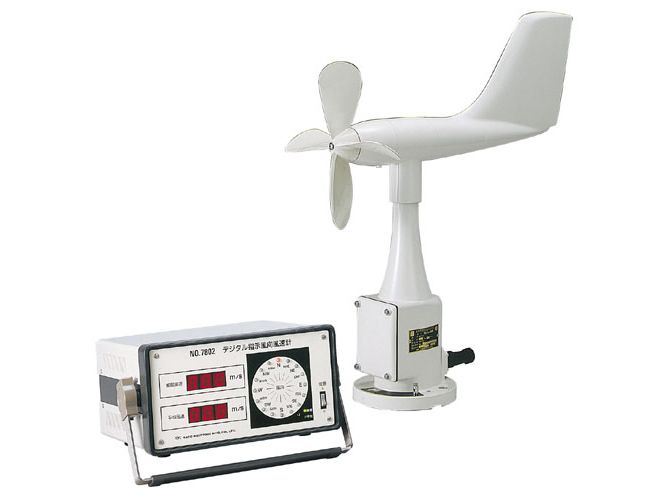

- Discontinued - Digital Wind Speed and Direction Indicator

Feature

■ This digital instrument gives you multiple output possibility without rising the cost compared to conventional analog indicators.

The figures of instant and mean wind speeds, and one of the dot lamps of 16 cardinal points to show wind direction are all lit in clear red LED to be easily read.

Also, the data can be exported to 2-pen Type Hybrid Recorder (Cat. No. 7983-12).

■ Analog signal is output while the instant and mean wind speed and the wind direction is displayed by LED. Connecting with 2-pen Type Hybrid Recorder enables the signal to be logged on paper.

■ The DC transformer inside the sensor is designed to be a cartridge so that its maintenance won't stop your work for long.

■ The indicator cannot only be for table use but also be embedded in an operator panel as a part of system complex.

Description

■ Purchase 2-pen Type Hybrid Recorder SKR-M18G-2PW (Cat. No. 7983-12) for analog recording.

Specifications

Cat. No.		7802-00
Product name		Digital Wind Speed and Direction Indicator
Wind Speed and Direction Sensor
Measuring method	Wind speed	Counterbalanced tail with potentiometer
	Wind direction	4-blade propeller with AC generator
Measuring range	W.S.	2 to 70 m/s
	W.D.	0 to 540°
Starting speed		2 m/s
Survival speed		90 m/s
Power		12 VDC Power consumption max. 10 mA
Connection cable		6-wire MVVS 0.5 mm2, 20 m
Dimensions		690 (W) x 760 (H) mm
Weight		5.7 kg
Digital Indicator
Display range	W.S.	2 to 70 m/s
	W.D.	16 cardinal points in 360°
Accuracy	W.S.	±0.5 m/s (< 10 m/s) ±0.5%rdg (> 10 m/s)
	W.D.	±5°
Output voltage	W.S.	0 to 10 mVDC or 0 to 1 VDC against 0 to 70 m/s
	W.D.	0 to 10 mVDC or 0 to 1 VDC against 0 to 540°
Power		100 VAC ±10% Power consumption 100 mA
Operation ambient		0 to 40°C, 30 to 85%rh
Dimensions		263 (W) x 136 (H) x 239 (D) mm Front panel: 256 (W) x 129 (H)
Weight		3.5 kg
