- Discontinued - Digital Anemometer with Alarm, with JMA Certificate

Feature

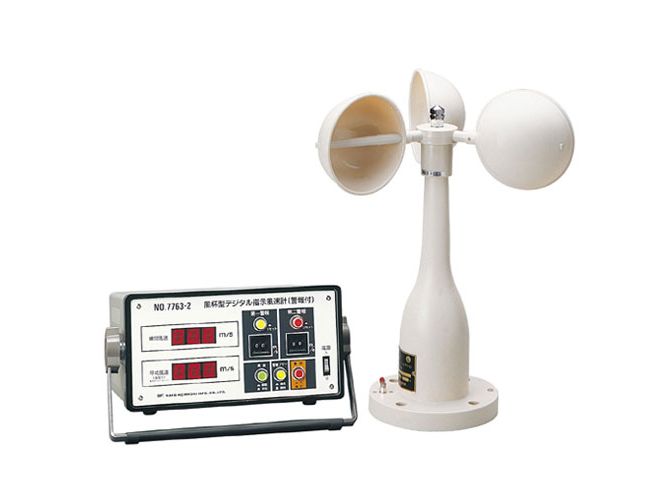

■ This is a digital anemometer with alarm, composed of a 3-cup photocoupler sensor and a indicator.

It digitally indicates instantaneous wind speed and mean wind speed (with wind run) simultaneously and gives an alarm when the wind speed exceeds the set point. Two different alarms, available for both instantaneous and mean wind speed, can be made at will with a rotary switch.

Alarm signal is given by relay contact in addition to an LED light and a buzzer sound.

■ An alarm rings at the wind speed you specify.

■ First alarm and second alarm can be individually set.

■ Equipped with a buzzer

■ The indicator can be placed on a desk and also embedded into a panel.

Specifications

Cat. No.	7763-2-10
Product name	Digital Anemometer with Alarm, with JMA Certificate
3-cup Wind Speed Sensor
Measuring method	3-cup photocoupler sensor 48 pulses/rotation 1564 pulses per wind run of 60 m/s
Measuring range	2 to 60 m/s
Starting speed	2 m/s
Survival speed	90 m/s
Connection cable	3-wire MVVS 0.5 mm2, 20 m
Dimensions	310 mm diameter x 380 mm (H)
Weight	0.8 kg
Digital Indicator with Alarm
Display range	0 to 60 m/s
Indicated articles	Instantaneous wind speed, mean wind speed per 1, 2, or 10 min. on 7-segment 3-digit LED
Accuracy	±0.5 m/s (< 10 m/s) ±0.5%rdg (> 10 m/s)
Alarm setting	Up to 2 points by relay contact between 0 and 60 m/s in steps of 1 m/s Available to turn on/off beeping Switch between continuous alarm and instantaneous alarm
Alarm appearance	First alarm: yellow LED, intermittent beeps Second alarm: red LED, intermittent beeps
Contact capacity	Rated load 120 VAC–5 A or 30 VDC–4 A
Operation ambient	0 to 40°C, 30 to 85%rh
Dimensions	263 (W) x 136 (H) x 239 (D) mm Front panel: 256 (W) x 129 (H) mm
Weight	3.5 kg
