- Discontinued - Hot Wire Anemometer

Feature

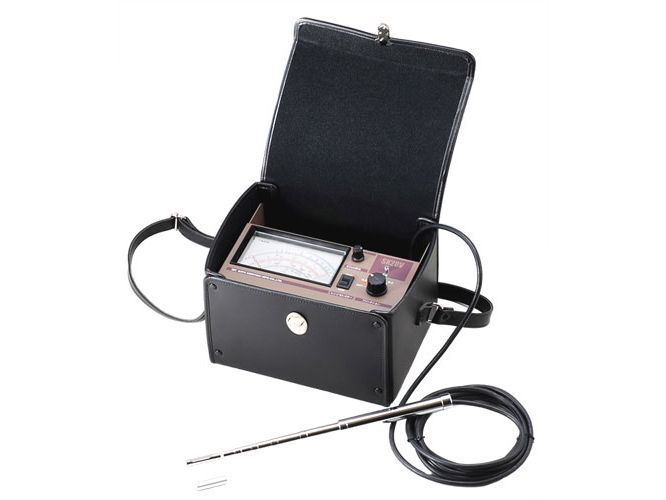

SK-28V is a compact multi-functioned hot wire anemometer which can measure air velocity, temperature and static pressure. Powered by batteries, you can bring it to anywhere without electricity.

Quick responses, wide temperature range from 0 to 120°C, and switchable dual wind speed ranges of 0 to 3 m/s and 3 to 40 m/s offer a broad field application.

Ideal for places such as air ducts, air compressor factories, testing rooms, and laboratories.

Specifications

Cat. No.		7683-01
Product name		Hot Wire Anemometer
Model name		SK-28V
Measuring range (dual ranges)	Wind speed	0.5 to 3 m/s, 3 to 40 m/s
	Temperature	0 to 60°C, 60 to 120°C
	Static pressure	0 to 500 Pa, 500 to 4500 Pa
Accuracy	Wind speed	± (5%rdg + 0.1) m/s (18 to 28 m/s) ± (5.9%rdg + 0.1) m/s (0 to 18 m/s) ± (28.1%rdg + 0.1) m/s (28 to 120 m/s)
	Temperature	±0.5°C
	Static pressure	±2% F.S. (> 10 Pa)
Detector		Pt thermistor
Automatic temperature compensation		Valid within 0 to 120°C
Expected measured gas		Standard atmosphere with standard component
Operation ambient		5 to 45°C, less than 85%rh
Power		C alkaline battery x6
Materials	Main body	Aluminum
	Telescoping part of probe	Chrome-coated brass
Dimensions	Main body	214 (W) x 117 H) x 155 (D) mm
	Sensor probe	8–18.7 mm dia. x 180–930 mm (L) extendable
	Heat resistant rubber cable	6 mm diameter x 3 m (L)
Weight		2.3 kg including batteries
Standard accessories		Adapter for static pressure measurement x1, leather case x1, C alkaline battery x6, instruction manual
