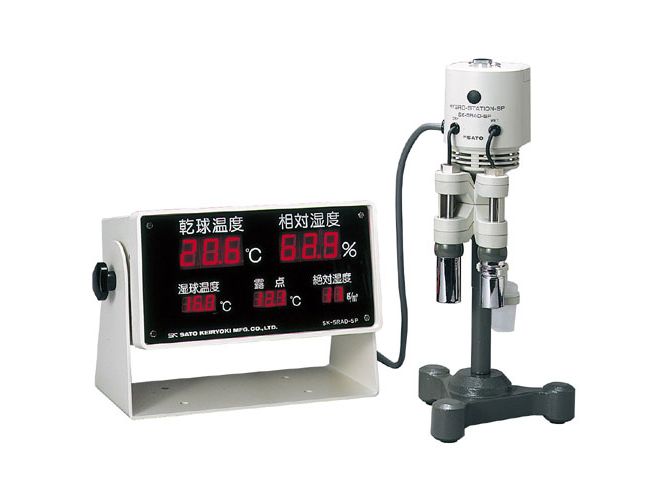

- Discontinued - Multiple Measuring System for Temperature and Humidity with JMA Certificate

Feature

■ Most reliable psychrometry method

SK-5RAD-SP is a precision hygrometer based on an Assmann psychrometer, which is said to be the most stable measure in humidity. Pt100 sensor enables long-term measurement with stability by its slow deterioration compared to electronic humidity sensor.

■ Remote measurement available

SK-5RAD-SP measures dry and wet bulb temperatures by Pt100 sensor and converts them to voltage in an internal R/V converter, to display their figures with relative humidity, absolute humidity, and a dew point.

What is notable especially for this device is that you can read the five data collectively at a single glance, and you can place the sensor section and the indicator section in different places as far as up to 50 m as these two units are separated.

■ Error messages to help maintenance

SK-5RAD-SP is equipped with self-diagnosis function to prevent incorrect operating procedures and accidents. If data or any function is found to be abnormal, an error message is displayed in the relative humidity display section.

■ Analog voltage output available to connect with external recorder
As SK-5RAD-SP outputs data of dry and wet bulb temperatures as analog voltage (DC 0–1V), it can be connected with a recorder for various applications.

Output connector

Analog output of dry bulb temperature changes in real time while its digital display on the indicator updates every 3 seconds.

Analog output and digital display of relative humidity update every 3 seconds.

* Ask us for a recommended recorder to be used with.

Specifications

Cat. No.	7435-10
Product name	Multiple Measuring System for Temperature and Humidity with JMA Certificate
Model name	SK-5RAD-SP
Indicated articles	Dry bulb temp.	Wet bulb temp.	Relative humidity	Dew point	Absolute humidity
Digits	3 digits				2 digits
Measuring range	0.0 to 50.0°C		N/A
Calculatable range	N/A		0.0 to 99.9%rh	−40.0 to 50.0°C	0 to 83 g/m3
Resolution	0.1°C		0.1%rh	1°C (−40 to −10°C) 0.1°C (−9.9 to 50.0°C)	1 g/m3
Measurement accuracy	N.D.		±0.01%rh	±0.01%rdg	±0.01%rdg
Display accuracy	0.2% F.S. ±1 digit		1%rh ±1 digit	0.1°C ±1 digit	±1%rdg
Sampling time	4 seconds
Detector	Pt100 sensor		N/A
Output	0 to 1 VDC for 0 to 50°C	N/A	0 to 1 VDC for 0 to 100%rh	N/A
Output impedance	500 Ω	N/A	500 Ω	N/A
Airflow speed	3 m/s		N/A
Operation ambient	0 to 50°C without condensing
Power consumption	100 VAC ±10%, 0.1 A
Capacity of water	13 mL
Dimensions	Indicator: 311 (W) x 192.5 (H) x 144 (D) mm Sensor: 80 (W) x 264 (H) x 110 (D) mm
Weight	Indicator: approx. 4.5 kg Sensor: approx. 1.5 kg including a cable
Standard accessories	2-m power cable x1, wick x20, water reservoir x1, instruction manual
