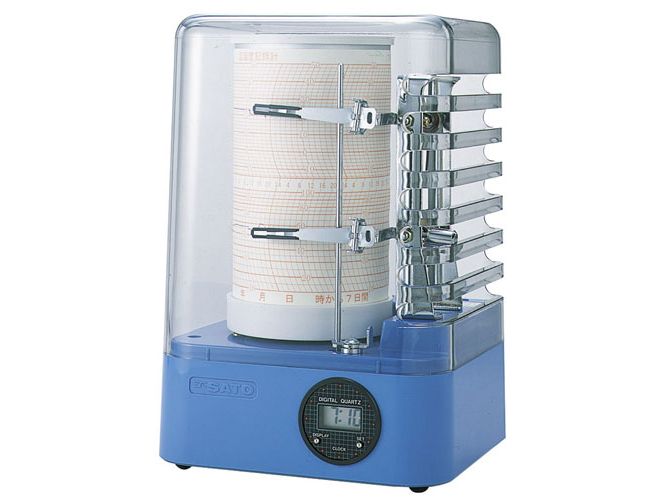

- Discontinued - Thermohygrograph Mini-Alpha (Blue)

Feature

■ An 800-g lightweight compact body only requires a square space of 15cm on a side.

■ Both wall mount and table use available

■ Uneven scales for humidity with a range of 20 to 70%rh extended for easy reading

■ Wide temperature range of −15 to 50°C for any practical use

■ A clock is embedded to help you confirm the time to start recording.

Specifications

Cat. No.		7006-00
Product name		Thermohygrograph Mini-Alpha (Blue)
Measuring range		Temperature: −15 to 50°C Humidity: 10 to 100%rh
Measurement accuracy	Temperature	±2°C (10 to 30°C) ±3°C (other)
	Humidity	±5%rh (30 to 90%rh, 15 to 25°C) ±7%rh (other)
Minimum scale		Temperature: 2°C Humidity: 5%rh
Detector		Temperature: Bimetallic strip Humidity: Bimetallic coil
Chart rotation		7 days counted by internal quartz clock with an accuracy of ±2 hrs./7 days
Applicable pen		No. 7238-04 Cartridge pen (violet)
Dimensions		125 (W) x 185 (H) x 110 (D) mm
Weight		0.8 kg
Power		Main body: AA zinc-carbon battery x1 Clock: Button cell LR41 x1
Battery life		Approx. 6 months
