No.7005-00

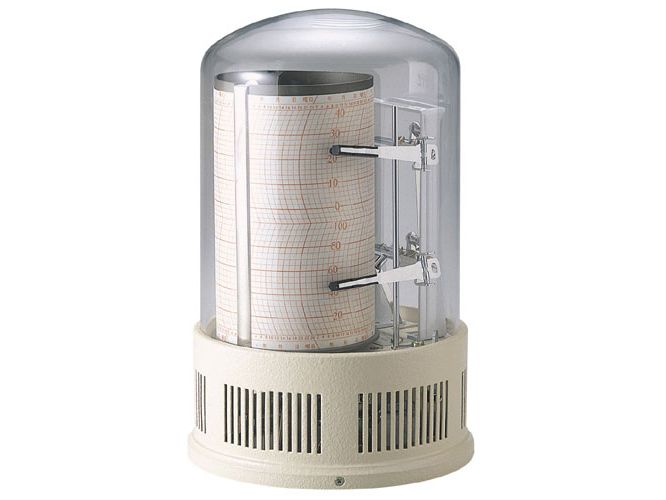

- Discontinued - Mini-Star Thermohygrograph
JAN code : 4974425311408
Calibration : Available
JCSS Accredited Calibration : Not available
This thermohygrograph is discontinued but its consumables are still available. Do not use chart rolls for Mini-Cube instead of the dedicated chart for this Mini-Star, with a temperature range of –6 to 40°C.
Description
Notice
Do not use chart rolls for Mini-Cube instead of the dedicated chart (Cat. No. 7005-62) for this Mini-Star, with a temperature range of –6 to 40°C.
Specifications
| Cat. No. | 7005-00 | |
| Product name | Mini-Star Thermohygrograph | |
| Measuring range |
Temperature: −6 to 40°C Humidity: 5 to 100%rh | |
| Accuracy | Temperature |
±2°C (10 to 30°C) ±3°C (other) |
| Humidity |
±5%rh (30 to 90%rh, 15 to 25°C) ±7%rh (other) | |
| Minimum scale |
Temperature: 2°C Humidity: 5%rh | |
| Chart rotation | 7 days counted by internal quartz clock | |
| Applicable pen | No. 7238-04 Cartridge pen (violet) which lasts 6 months | |
| Material | Cover: Reinforced glass | |
| Dimensions | 125 mm diameter x 192 mm (H) | |
| Weight | 1.5 kg | |
| Power | AA zinc-carbon battery x1 | |
