No.2110-14
Bimetal Thermometer, −30 to 50°C, 150 mm Stem
BM-T-75S
JAN code : 4974425175208
Calibration : Available
JCSS Accredited Calibration : Not available

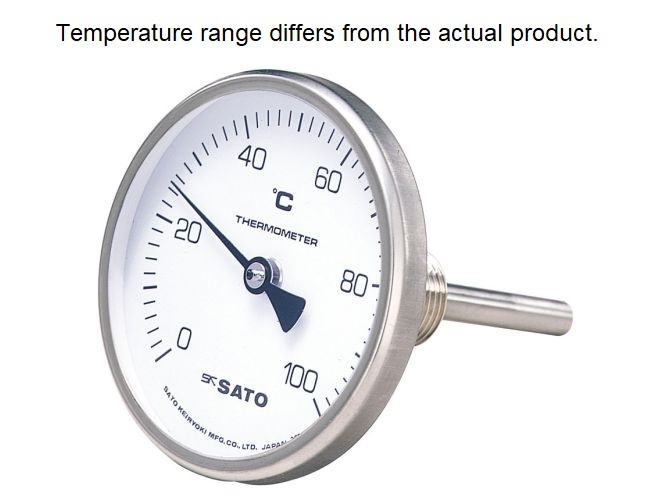

BM-T-75S is a bimetallic dial thermometer in a stainless steel case with a 75-mm dial, with its sensing stem extended behind the dial. You can choose your preferred one from 2 temperature ranges and 3 different length of sensing stems. This model is of −30 to 50°C, 150-mm sensing stem.
Instruction manual
Description
■ Notice:
Order a temperature range which covers your target temperature with a safe margin. For example, order 0 to 150°C if the temperature is expected to be up to 100°C.
Order a protector pipe in addition in the following cases:
- The sensing stem receives pressure more than 2 kgf/cm2
- A target object is corrosive; however, there is a probability that the protector pipe made of stainless steel can not prevent corrosion, thus ask us for details.
Ask us for details about make-to-order products, or if this product is located in a vibrating place.
■ Drawing
Specifications
| Cat. No. | 2110-14 |
| Product name | Bimetal Thermometer, −30 to 50°C, 150 mm Stem |
| Model name | BM-T-75S |
| Measuring range | −30 to 50°C |
| Accuracy | ±1°C |
| Minimum scale | 1°C |
| Waterproofness | IPX1 drip-proof |
| Materials |
Dial case, sensing stem, screw: Stainless steel SUS304 Window: Glass |
| Dimensions |
Dial case/window: 80 mm/75 mm diameter Sensing stem: 8 mm dia. x 150 mm (L) |
| Screw | 1/2" PT, strength 2 kgf/cm2 |
