No.1830-00
Refrigerator Digital Thermometer
PC-3310
JAN code : 4974425801626
Calibration : Available
JCSS Accredited Calibration : Available
PC-3310 is a digital thermometer to keep showing current, maximum, and minimum temperatures altogether, which can be placed inside a refrigerator as a whole.
For a freezer, insert only the external probe inside the door to make it work as well as refrigerators.
The 3-meter-long external probe detects down to −50°C, while the internal sensor measures down to −5°C when the probe is not connected.
Instruction manual
■ Overview (Japanese only)
Feature
■ Always displays current, maximum, and minimum temperatures
■ Enables to monitor an accepted range of temperature variation at a glance
■ Switches between the internal sensor and the external probe
- Temperature at the internal sensor (IN) is displayed when the probe is unconnected.
- Temperature at the external probe (OUT) is displayed automatically when the probe is connected.
■ Placeable in refrigerators
- For a freezer, do not put the whole unit inside of it. Insert only the external probe inside the door.
- Be careful not to cause condensing by excessive opening and closing of doors.
■ External probe with a flat cable
- A flat cable makes it easy to go through a gap of doors on a fridge and a freezer.
■ IPX5 waterproof
- Safe to use in an environment with water splashes
■ Resolution 0.1°C
- Good for precise monitoring
■ Be hygienic
- Contains antimicrobial in the body.
- Sensor part in the external probe is made of hygienic stainless steel.

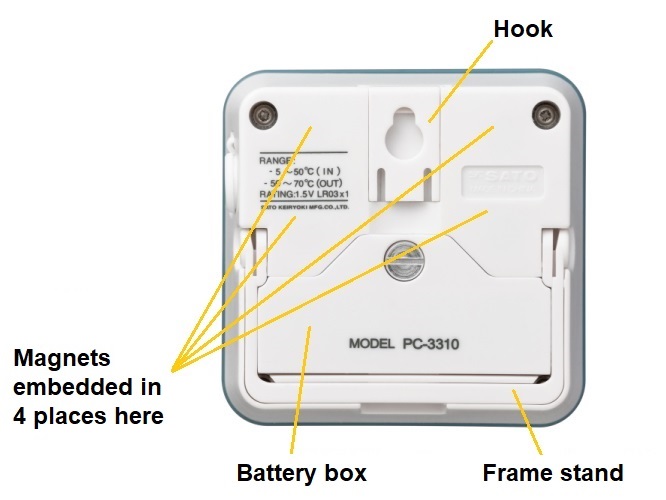

■ Three ways to install
Description
■ Maximum and minimum temperature is reset when either one of the following conditions is met:
- When the battery is replaced
- When the reset key is pressed
Specifications
| Cat. No. | 1830-00 | |
| Product name | Refrigerator Digital Thermometer | |
| Model name | PC-3310 | |
| Measuring range | Internal sensor | −5.0 to 50.0°C |
| External probe | −50.0 to 70.0°C | |
| Accuracy | ±1.0°C (0.0 to 40.0°C) ±2.0°C (other) | |
| Resolution | 0.1°C | |
| Sampling time | 10 seconds | |
| Indicated items | Current temperature, maximum temp., minimum temp. | |
| Waterproofness | IPX5 waterproof * Resists water only when the connector cap is closed, or the external probe is connected. * Do not put the probe underwater. | |
| Operating ambient | −5 to 50°C, less than 80%rh without condensing | |
| Power | AAA battery x1 | |
| Battery life | Approx. 2 years under room temperature, with alkaline battery | |
| Material | Body | ABS resin with antimicrobial, silicone rubber |
| External probe | Sensor part: SUS304, PE resin Cable: PVC resin (heat-resistant up to 50°C) | |
| Dimensions | Body | 67 (W) × 65 (H) ×22 (D) mm |
| External probe | Sensor part: Ø5.5 × 11 mm (resin part Ø7.9 mm) Cable: 3 m long | |
| Weight | 71 g including battery | |
| Accessories | AAA battery x1, clasp for holding external probe x1, instruction manual | |
