Moisture Meter for Compost

Feature

■ Easy and fast

Just only pierce the sensor into the target and press the key.

■ Accurate

Internal conversion formula from resistance to water content can be adjusted manually, and SK-970A remembers up to seven patterns of formulae. Average value available to be shown also.

Description

■ Notice

- Powdered or granular objects cannot be measured.
- Measurement may not be accurate if the compost contains a lot of highly conductive materials such as chicken manure or charcoal.
- As SK-970A has temperature compensation function, you do not need to compensate temperature against the measured value within 5 to 40°C. However, the error may enlarge if there is a temperature gap between the probe and the compost. To prevent it, insert the probe in the compost 30 seconds before the measurement.

■ How it works

SK-970A measures electrical resistance in electrodes and displays it as a moisture value. If the object contains electrically conductive materials, such as salt and metal, measured values may differ from actual moisture content. However, even when conductive material is included in the object, if the amount of such material is relatively small so that it doesn't affect to moisture value, and it is evenly distributed, the measured data will be reliable enough for comparison.

Specifications

Cat. No.	1736-00

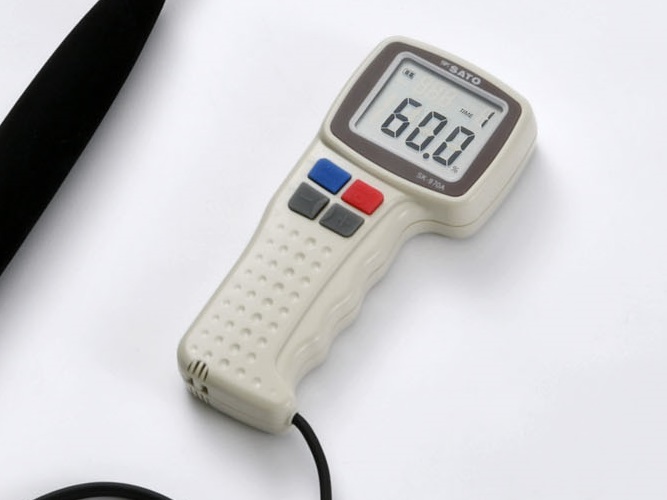

Product name	Moisture Meter for Compost
Model name	SK-970A
Measuring system	Resistance measurement
Measuring range	23.0 to 80.0% in the standard range
Measuring range by resistance (not shown)	66 MΩ to 8.2kΩ (20°C)
Resolution	0.1%
Functions	3 1/2-digit LCD Mean value display Automatic temperature compensation
Operation ambient	Main body: 5 to 40°C without condensing Sensor: 0 to 80°C
Power	AA zinc-carbon battery x2
Material	ABS resin
Dimensions	Main body: 70 (W) x 155 (H) x 25 (D) mm Sensor probe: 10 mm diameter x 800 mm (L) Sensor cable: 0.8 m (L)
Weight	447 g including batteries
Standard accessories	AA zinc-carbon battery x2, hand strap
