No.1709-11
Overtime Timer
TM-23
JAN code : 4974425170920
Calibration : Not available
JCSS Accredited Calibration : Not available
TM-23 is a timer which rings for 5 seconds and starts counting up when a countdown finishes, and then indicates overtime when the stop key is pressed. Pressing the stop key again makes the timer display revert to the originally set time. It is an ideal timer to monitor overtime at worksites.
Feature
■ An alarm rings for 5 seconds when a countdown finishes while counting up starts simultaneously. Press the stop key to stop counting.
■ Large display of figures 31 mm in height
■ An alarm rings and a light blinks when the time is up.

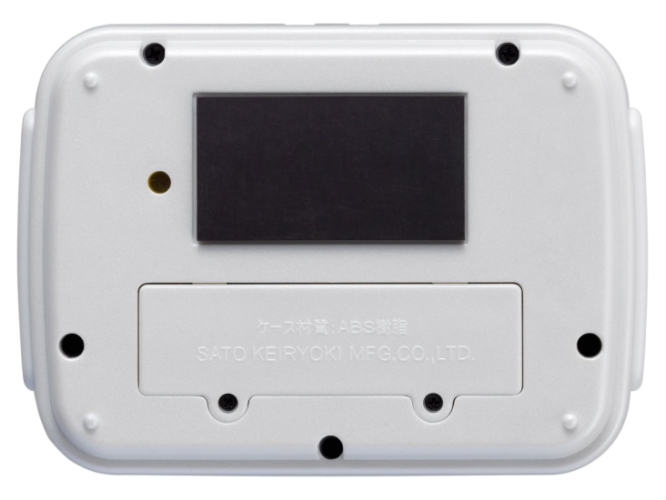

■ A magnet and a string for hanging are attached on the back of the drip-proof body.
Description
■ Ideal for monitoring of overtime in the following instances:
- Carryover cooking
- Chemical experiments
- Simulation of taking a certification exam
- Process management such as in semiconductor factories
Specifications
| Cat. No. | 1709-11 |
| Product name | Overtime Timer |
| Model name | TM-23 |
| Waterproofness | IPX1 drip-proof |
| Timer range |
Countdown from 1 sec. to 99 min. 59 sec. in steps of 1 sec. Count-up until 99 min. 59 sec. |
| Buzzer volume | 70 dB |
| Material | ABS resin |
| Height of displayed figures | Max. 31.3 mm |
| Dimensions | 93 (W) x 67 (H) x 20 (D) mm |
| Weight | 95 g including a battery |
| Power | AAA battery x1 |
| Battery life | Approx. 1 year |
| Standard accessory | String for hanging x1 |
| Lot size | 12 per box, 5 boxes per carton |
