No.1707-30
Non-Contact Countdown Timer
TM-29
JAN code : 4974425100187
Calibration : Not available
JCSS Accredited Calibration : Not available
A sanitary timer that you can start it without touching but holding your hand over the non-contact sensor, to improve your work performance.
Leaflet
Instruction manual
Feature
■ Holding your hand over the non-contact sensor triggers countdown, and doing the same while alarm is ringing stops the alarm without touching.
■ Non-contact sensor senses up to 3 cm away vertically.
■ The front panel is drip-proof.
■ Countdown time can be set from 1 sec. to 90 min. 59 sec. in 1-second steps.
■ An alarm is indicated with beeping, flashing of LED, and blinking of LCD.
Alarm sound is selectable from 1) beep, 2) beep-beep, or 3) beep-beep-beep-beep.
Description

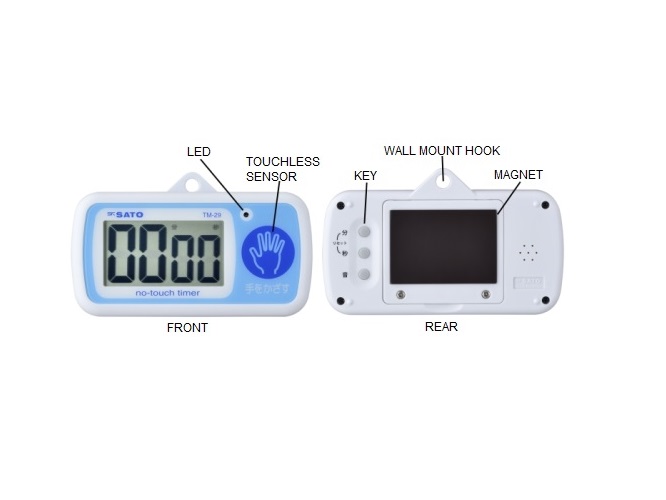

■ Three choices of mounting:
- A magnet on the back of the body to mount on metal walls
- An adapter plate to mount on non-metal walls and tiles
- A hook on the top to hang on walls
Specifications
| Cat. No. | 1707-30 |
| Product name | Non-Contact Countdown Timer |
| Model name | TM-29 |
| Functions | Repeating alarm |
| Detector | Infrared sensor |
| Waterproofness | IPX1 drip-proof (the front panel only) |
| Timer range | Countdown from 1 sec. to 99 min. 59 sec. in steps of 1 sec. |
| Buzzer volume | 70 dB |
| Material | ABS resin |
| Dimensions | 120 (W) x 62 (H) x 22 (D) mm |
| Weight | 130 g including batteries |
| Power | AAA battery x3 |
| Battery life | Approx. 1 year if used 50 times a day |
| Standard accessories | AAA battery x3, adapter plate x1, instruction manual |
| Lot size | 10 per box, 6 boxes per carton |
