- Discontinued - Pocket Sized Infrared Thermometer

Feature

■ Quick and contactless

■ Handy size

■ Adjustable emissivity

■ A trumpet-shaped spot guide to help you estimate the measurement spot

■ Continuous measurement available

■ Displays min./max. temperature

■ Recommended applications

For temperature inspections in food industry:

- when unloading delivered food

- when checking surface temperature on a grill

- when shipping or receiving frozen food

- for a refrigerator showcase

For temperature inspections in machinery industry:

- for a motor bearing

- when checking air conditioners and electric facilities

- when checking operation of a vending machine

- when maintaining a car, such as checking exhaust manifolds

- when checking surface temperature of a switchboard

- when painting

For agriculture:

- for stored fruits, vegetables, seeds, fish, and flowers

- for a greenhouse to determine necessity of ventilation

Description

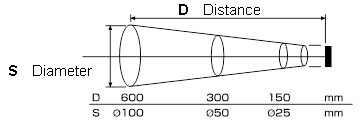

■ Measurement Spot Size

The measurement spot size of this thermometer changes in accordance with the distance as shown above. This spot is defined on the basis of the area that receives 90% or more of the energy. The D:S ratio, which is the ratio of the distance between the object and the thermometer to the size of the spot, is preset at 6:1 (D = measuring distance, S = diameter of spot). For example, for the distance of 150 mm, a spot circle of diameter 25 mm can be measured.

If the object is too small, make the distance smaller by bringing the thermometer closer to the object. For higher accuracy, make sure that the area of the object is at least twice as large as the spot being measured.

Note:

If the area of the object is much larger than the spot size, the accuracy of measurement is affected. Also, if the area of the object is much smaller than the spot size, the accuracy of measurement may be affected by inclusion of a part that is not supposed to be measured.

■ Trumpet-shaped spot guide

Extending the edge from the trumpet imaginally tells you the size and the position of the measurement spot.

■ Caution! This device is for industrial use, not for clinical use.

Specifications

Cat. No.	1081-00
Product name	Pocket Sized Infrared Thermometer
Model name	PC-8400II
Measuring range	−60 to 240°C
Accuracy	±5°C (−60 to −41°C) ±4°C (−40 to −21°C) ±3°C (−20 to −0.1°C) ±2°C (0 to 99.9°C) ±3%rdg (100 to 199.9°C) ±4%rdg (200 to 240°C) Under blackbody calibration with ambient temperature 23±5°C, emissivity 0.95
Repeatability	±1°C
Resolution	0.1°C (−9.9 to 199.9°C) 1°C (other)
Emissivity	Adjustable between 0.05 and 1.00 in steps of 0.01
Distance coefficient	D:S = 6:1 (where D is distance, S is diameter of spot circle)
Detector	Thermopile
Operation ambient	0 to 50°C, less than 80%rh without condensing
Materials	Main body: ABS resin Trumpet-shaped spot guide: POM
Dimensions	Main body: 51 (W) x 122 (H) x 22.5 (D) mm Trumpet-shaped spot guide: 24.6 mm diameter
Weight	63 g including battery
Power	Lithium coin cell CR2032 x1
Standard accessories	Neck strap x1, plastic cover x1, lithium coin cell CR2032 x2 (one is already installed), instruction manual
